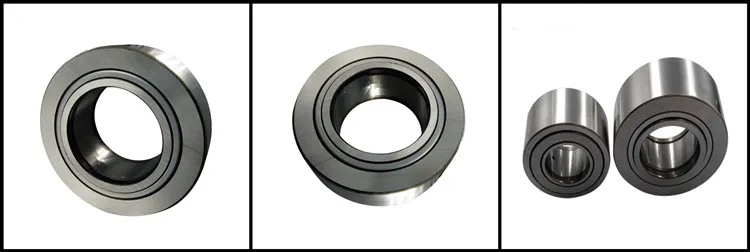

Product Description
Data Sheet
| Item | NATV17 / NATR17 |
| Material | GCr15 |
| Inner dia. | 17 mm |
| Outer dia. | 40 mm |
| Width | 21 mm |
| Weight | 105g |
| Delivery time | 7-10days |
| Package | Plastic Bag + Carton Box |
Feature
1.Cam Follower is a bearing having thick outer ring and a stud to which needletype rollers are built into, and it is a bearing having small friction coefficient and excellent rotational performance designed for outer ring revolution.
2.With the purpose of increasing the load area effectively, this bearing is designed so that the radial gap is smaller than the general needle roller bearings. Therefore, it alleviates the impact load, and a stable longlife is gained. Since the stud undergoes screw processing and stepped processing, they can be attached easily.
3.Cam Followers come in series of abundant types such as those with cages, full complement,
shield type, sealed type, spherical outer ring, cylindrical outer ring and ones with hexagon sockets.
Different Sizes For Your Reference

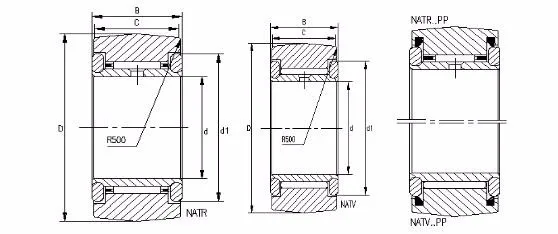

| Shaft Dia. | Bearing Designation | BoundaryDimensions | Weight |
| Without Inner Race | With Inner Race | d | D | B | C | d1 | rs | g |
| mm | mm | | | | | min |
| 16 | NATR 5 | NATR 5 PP | 5 | 16 | 12 | 11 | 12 | 0.15 | 14 |
| NATV 5 | NATV 5 PP | 5 | 16 | 12 | 11 | 12 | 0.15 | 15 |
| 19 | NATR 6 | NATR 6 PP | 6 | 19 | 12 | 11 | 14 | 0.15 | 20 |
| NATV 6 | NATV 6 PP | 6 | 19 | 12 | 11 | 14 | 0.15 | 21 |
| 24 | NATR 8 | NATR 8 PP | 8 | 24 | 15 | 14 | 19 | 0.3 | 41 |
| NATV 8 | NATV 8 PP | 8 | 24 | 15 | 14 | 19 | 0.3 | 42 |
| 30 | NATR 10 | NATR 10 PP | 10 | 30 | 15 | 14 | 23 | 0.6 | 64 |
| NATV 10 | NATV 10 PP | 10 | 30 | 15 | 14 | 23 | 0.6 | 65 |
| 32 | NATR 12 | NATR 12 PP | 12 | 32 | 15 | 14 | 25 | 0.6 | 72 |
| NATV 12 | NATV 12 PP | 12 | 32 | 15 | 14 | 25 | 0.6 | 72 |
| 35 | NATR 15 | NATR 15 PP | 15 | 35 | 19 | 18 | 27 | 0.6 | 103 |
| NATV 15 | NATV 15 PP | 15 | 35 | 19 | 18 | 27 | 0.6 | 105 |
| 40 | NATR 17 | NATR 17 PP | 17 | 40 | 21 | 20 | 32 | 1 | 144 |
| NATV 17 | NATV 17 PP | 17 | 40 | 21 | 20 | 32 | 1 | 152 |
| 47 | NATR 20 | NATR 20 PP | 20 | 47 | 25 | 24 | 37 | 1 | 246 |
| NATV 20 | NATV 20 PP | 20 | 47 | 25 | 24 | 37 | 1 | 254 |
| 52 | NATR 25 | NATR 25 PP | 25 | 52 | 25 | 24 | 42 | 1 | 275 |
| NATV 25 | NATV 25 PP | 25 | 52 | 25 | 24 | 42 | 1 | 285 |
| 62 | NATR 30 | NATR 30 PP | 30 | 62 | 29 | 28 | 51 | 1 | 470 |
| NATV 30 | NATV 30 PP | 30 | 62 | 29 | 28 | 51 | 1 | 481 |
| 72 | NATR 35 | NATR 35 PP | 35 | 72 | 29 | 28 | 58 | 1.1 | 635 |
| NATV 35 | NATV 35 PP | 35 | 72 | 29 | 28 | 58 | 1.1 | 647 |
| 80 | NATR 40 | NATR 40 PP | 40 | 80 | 32 | 30 | 66 | 1.1 | 805 |
| NATV 40 | NATV 40 PP | 40 | 80 | 32 | 30 | 66 | 1.1 | 890 |
| 85 | NATR 45 | NATR 45 PP | 45 | 85 | 32 | 30 | 72 | 1.1 | 910 |
| 90 | NATR 50 | NATR 50 PP | 50 | 90 | 32 | 30 | 76 | 1.1 | 960 |
| NATV 50 | NATV 50 PP | 50 | 90 | 32 | 30 | 76 | 1.1 | 990 |
